V6 to V7 Pump V6 to V8 Pump

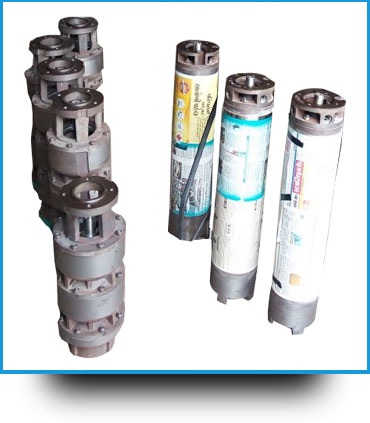

V-6 & V-7 water cooled submersible pumpsets are available in 3 ph 415 V /50 hz 2880 rpm.The pumpset is specialy designed to work even at low voltage. The windings of the motor are made of water proof poly coated insulated copper wires.The motor shaft is guided by L.B. bearing bushes having extremely high wearing capacity the axial thrust produced by the pump and router are taken care by the means of carbon pad thrust bearing.
| Pump Type | Borewell Dia | HP | Min/Max Head | Min/Max Discharge in LPM |
| V – 6/V – 7 Mixed Flow | 175 mm & Above | 7.5 to 20.0 | 17 to 63 mtr | 640 to 1850 LPM |
| V6 – V – 8 Janta | 200 mm & Above | 7.5 to 25.0 | 6 to 96 mtr | 636 to 2120 LPM |
| V – 8 | 200 mm & Above | 7.5 to 62.5 | 6 to 126 mtr | 636 to 3000 LPM |
